Citizen Leds 9W 630LM LED Dimmable Down Lights Square Driver IP20

Minimum Order Quantity : 100PCS ราคา : Negotiable
Packaging Details : 138X88X98mm/1pcs, G.W: 270g Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 10,000pcs/Month
Place of Origin: China ชื่อแบรนด์: MF
ได้รับการรับรอง: CE, RoHS Model Number: MF-065M0090-S

ข้อมูลรายละเอียด

Model No:: MF-065M009-S Power:: 9W
LED Chip:: CITIZEN LED Driver:: Phlips
Input Voltage:: 220-240VAC Color Temperature:: 2700K-6000K
Beam Angle:: 45° Luminous Flux:: 630LM
แสงสูง:

cob led downlights

,

recessed led downlights

รายละเอียดสินค้า

Citizen Leds 9W 630LM LED Dimmable Down Lights Square Driver IP20


Quick Detail:

  1. 9W Dimmable LED Down light
  2. Input: AC 200V-240V, 50/60Hz
  3. Luminous Flux:≧630Lm
  4. CRI: >83
  5. Beam Angle: 45°
  6. LED chip: Citizen
  7. IP: 20
  8. Dimmable: Yes



Description:



Ming Feng, as a prominent China Dimmable LED Down Light company, devotes himself to providing high quality Dimmable LED Down Lights for the replace ment of traditional down lights in residential, Museum, Office and Commerical application.

Integrated design structure makes M series Micro Dimmable LED Down Light a perfect, economical and direct replacement for 50W MR16 halogen. Round and Square for freely choose to achieve ideal light effect. Citizen dynamic white enhances chromatic quality. Easy and fast installation way saves much manual work.


Specifications:


Model No:

MF-065M009-S

Input voltage

200-240Vac, 50hz/60hz

Power(watt)

9W

Product Size

¢69X H64mm

Cutting hole size Dia65mm

Color temperature

2700K-6000K

LED Chip

Citizen

LED Driver

PF

>0.92

Luminous Flux (lm)

630lm

CRI(Ra)

≥83

Lifespan

≥35000hrs

Beam Angle

45°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

Y

IP

20

Dimension Single Package

138x88x98mm

Weight Single Package

270g

Certificate

CE/RoHS

Warranty Period

3 years




Competitive Advantage:


  1. Citizen technology creates dynamic white
  2. 45°beam angle ,soft light effect
  3. Both CRI>80 and CRI>90f for option
  4. Kn<10 driver, reliable performance
  5. Smooth dimming on most dimmers
  6. High power factor >0.92
  7. Life to 70% lumen maintenance- 45,000hrs
  8. Anti-glare system to give more visual comfort

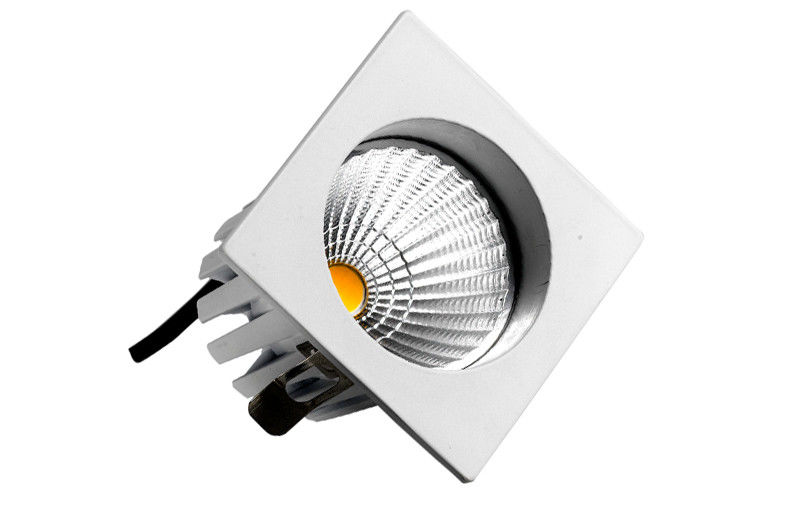

Product Picture:



Citizen Leds 9W 630LM LED Dimmable Down Lights Square  Driver IP20 0




Light distrution curve:

Citizen Leds 9W 630LM LED Dimmable Down Lights Square  Driver IP20 1



Dimension:


 Citizen Leds 9W 630LM LED Dimmable Down Lights Square  Driver IP20 2


Applications:


Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc
