โฟโตเซลล์เซนเซอร์ สวนแสง LED ถนนแสง 240W 100W 50W ต้น IP66 Ik08 กันน้ํา ถนนทางเท้า แสงจอดรถ
ชื่อผู้ติดต่อ : Claire Li
หมายเลขโทรศัพท์ : 86-15999718117
WhatsApp : +8615999718117
จำนวนสั่งซื้อขั้นต่ำ : | 50pcs | ราคา : | Negotiable |
---|---|---|---|
รายละเอียดการบรรจุ : | 590*395*115mm/pcs, N.W:6.8Kg G.W:8.5kg | เวลาการส่งมอบ : | Depends on orders |
เงื่อนไขการชำระเงิน : | T/T, Western Union, L/C,Paypal | สามารถในการผลิต : | 10,000pcs/Month |
สถานที่กำเนิด: | China | ชื่อแบรนด์: | MF |
---|---|---|---|
ได้รับการรับรอง: | CE, TUV, ROHS, FCC, DLC | หมายเลขรุ่น: | MF-P120 |
ข้อมูลรายละเอียด |
|||
Item No:: | MF-P120 | Power:: | 120W |
---|---|---|---|
Input voltage:: | AC85-305V, 50/60Hz | LED Chip:: | Cree/Samsung |
LED Driver:: | Meanwell HLG series | Luminous Flux(lm):: | 15600lm |
CRI:: | >80 | Color of body: | Grey/ Black/Silver |
IP Grade: | 67 | CCT: | 3000K,4000K , 5000K |
Mounting: | Pole/wall Mount available | Material: | Powder coated die casting aluminum |
แสงสูง: | led parking lot light,parking lot led lights |
รายละเอียดสินค้า

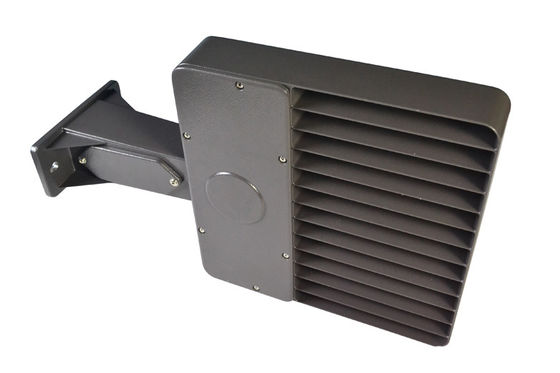

120W Led Parking Lot Lights With Sensor , 130lm / W, Grey / Black / Silver color
Description:
Our this module design led parking lot lighting is allocated with top grade led chip of Cree XTE /SAMSUNG 351B and HLG series Meanwell driver, the whole lamp efficiency can up to 130lm/w, PF> 0.98, which guarentees a working lifetime over 100,000h hours and a warranty of 5 years.
this parking lights with IP65 waterproof, 90°, 120°, 90*120°, 85*135° different beam angle, Grey/ Black/Silver body color for choose, Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.6 different kinds of bracket avaiable for pole, wall...etc installation.
Competitive Advantage:
1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP67.
4. Beam Angle: 90°, 120°, 90*120°, 85*135°
5. Functions: Dimmable, Photocell available.
6. Warranty: Five years
7. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.
8. Body color : Grey/ Black/Silver
9. Installation angle -90~ +90 adjustable
10. Hollow out heat sink design make the lamp lighter and good heat dissipation.
Specifications: MF-P120 Parking Light Data Sheet.pdf
Item |
MF-P120 |
Input voltage |
85-305Vac 50Hz/60Hz |
LED Power |
120W |
Rated Power |
125W |
Delivered Flux(Tj80°c) |
15600lm |
IP Rating |
IP67 |
Luminous Efficiency |
130LM/W |
LED Qty: | 60pcs |
Pole Diameter(mm) | Dia60mm / Dia76mm |
Color temperature |
3000K / 4000K / 5000K |
LED Chip |
Cree/Samsung |
LED Driver |
Meanwell |
Color Rendering Index |
>80 |
Power Factor |
>0.98 |
Lifespan |
≥100,000hrs |
Operation Environment |
Temperature:-40°C~50°C / Humidity:10%~95% |
Material |
Aluminum Alloy |
Product Size(mm) |
343(L)*432(W)*176(H) |
Packing Size(mm) |
590(L)*395(W)*115(H)/pcs |
Weight |
N.W:6.8Kg G.W:8.5kg |
Certificate |
CE/RoHS/TUV/FCC/DLC |
Warranty Period |
5 years |
120Watt LED Parking Lot Lighting Show :
Packaging:
Light Distribution Curve:
