IP66 30 wattage high power led street light 3000-5700K Ra80,150lm/w, microwave

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: MF
ได้รับการรับรอง: CE, RoHS,DLC
Model Number: MF-ST030
การชำระเงิน:
Minimum Order Quantity: 100PCS
ราคา: Negotiable
Packaging Details: 49*35.5*17.5cm/1pcs, G.W: 6.5Kg
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, Paypal,L/C
Supply Ability: 5,000pcs/Month

ข้อมูลรายละเอียด

CRI: >80 Power: 30W
THD: <17% Life Span: >50000Hrs
Lumious Efficiency: 130LM/W Material: Die-casting Aluminium
PF: >0.9 IP: 66
LED Driver: Meanwell Dimmable: YES
แสงสูง:

exterior led lighting

,

led street light

รายละเอียดสินค้า

IP66 30 wattage high power led street light 3000-5700K Ra80,150lm/w, microwave

Specifications:

Item

MF-ST030

Input voltage

85-265Vac  50Hz/60Hz

LED Power

30W

Rated Power

30±3W

Delivered Flux(Tj80°c)

3900lm

IP Rating

IP66

LED QTY

24 pcs

Color temperature

3000K-6500K

LED Chip

SAMSUN/

LED Driver

Meanwell

Color Rendering Index

Ra>75

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

410(L)*298(W)*79(H)

Net Weight

4.3Kg

Certificate

CE/RoHS/DLC

Warranty Period

5 years



Description:
Dimmable Module LED street lights embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.
The Module led street lights source use 140M/W SAMSUNG/ , the luminaire reach 130LM/W, High efficiency driver system from Meanwell, Power box free tool to open, easy installation and maintenance, photocell function for optional, adjustable juction available, DLC, CE, GS ,Rohs certificated, provide 5 years warranty. Wildly use for Free way, Main road, Secondary main road and so on.

Competitive Advantage:

1. Modular design, the light efficient reach 130lm/W
2. The light source use 140M/W SAMSUNG/ , the luminaire reach 130LM/W
3. Non-image optics system, improves lumen output ratio
4. High efficiency driver system from Meanwell
5. Power box free tool to open, easy installation and maintenance
6. Elegant appearance, open air ventilation design, good heat dissipation function
7. “Tool free” locking design to open and close the driver compartment simply, easy installation and maintenance
8. Photocell and 0-90degree ajustable bracket available.
9. Dimmable version optional



Products show:

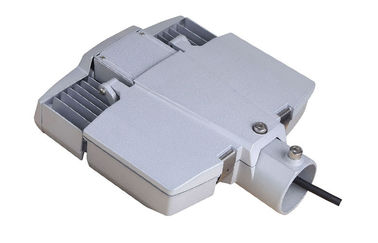

IP66 30 wattage high power led street light 3000-5700K Ra80,150lm/w, microwave 0




Light Discurve:

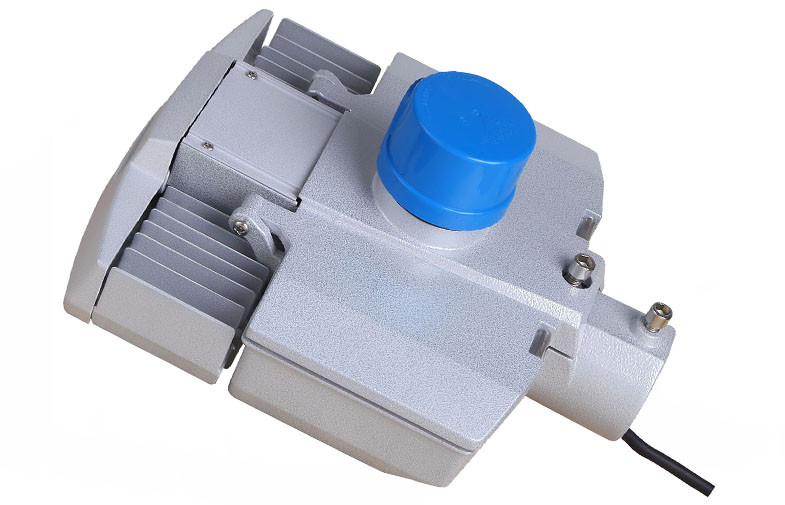

IP66 30 wattage high power led street light 3000-5700K Ra80,150lm/w, microwave 1


Applications:

Wildly use for Free way, Main road, Secondary main road and so on.

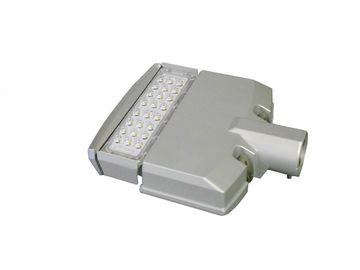

IP66 30 wattage high power led street light 3000-5700K Ra80,150lm/w, microwave 2
