IP67 ไฟ LED ฝัง, ไฟแนวนอน 3 วัตต์, อินพุต 12-24Vdc, แดง / น้ำเงิน / เขียว

Minimum Order Quantity : 100PCS ราคา : Negotiable
Packaging Details : 17*17*14cm/18pcs/inner box, 2.88KG/inner box, 36*36*56cm/12 inner box/carton, 34.6KG/carton Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 10,000pcs/Month
Place of Origin: China ชื่อแบรนด์: MF
ได้รับการรับรอง: CE, RoHS Model Number: MF-03WB

ข้อมูลรายละเอียด

อำนาจ: 3W ขนาดของสินค้า: Ф48× H46mm ขนาดรูตัด: 34 มม
ชิป LED: เอพิสตาซัง IP Gregee: IP67
CCT: WW / NW / CW / R / G / B แสง: 280Lumen
แรงดันไฟฟ้าอินพุต: DC12-24V มุมของลำแสง: 90°
CRI: > 80 Ra วัสดุ: อลูมิเนียมและสแตนเลส
แสงสูง:

led deck lights

,

outdoor led floor lights

รายละเอียดสินค้า

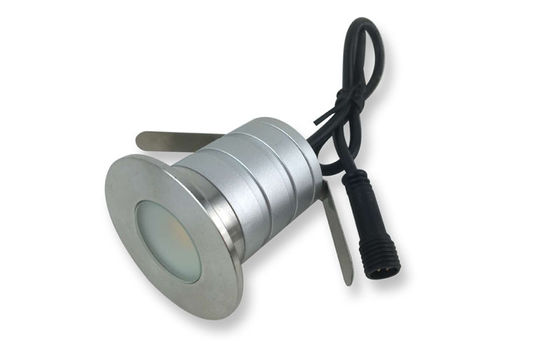

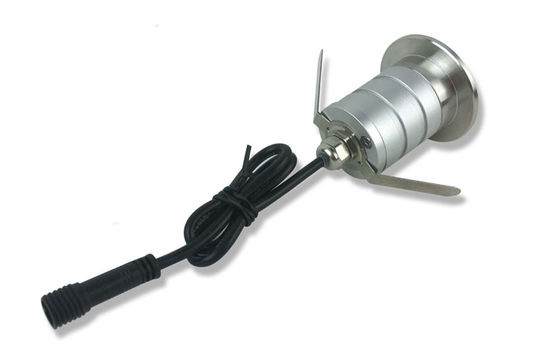

IP67 led buried lights, 3 watt 280lumen, 12-24Vdc input, Red/Blue/Green




Description:

As a professional LED lighting products manufacturer, The IP67 waterproof underground led light with stainless steel material, 15°/45°/60° beam angle for optional,use high quality USA CREE-XBD LEDS, Luminous flux up to 280lm, low inupt voltage DC12-24V more safe and reliable.The CRI up to 80Ra, Protection class IP68 can be used in 10meters underwater and Light color rich optional, warm white, pure white, cold white, red, green, blue for options.


This IP67 waterproof underground led light body with high quality stainless steel and 6063 aluminum, lifetime more than 35000Hrs. Two kinds installation method, one is directly install on the underground, another with fixed embedded parts.



Long LED lifespan comes from scientific thermal management. Superior material, heat sink appearance design and the thermology application, not a single one of these can be dispensed with Ming Feng Lighting utilize distinctive highly thermal conductivity material, unique multi-surface and hole designing for heat sink making the air flow fast, which fully taking away the heat and keeping the junction temperature of LED chips very low.


The package is color box  for inner box, and accessories available. Oue lead time for sample order is 10 working days, bulk order is 20 days once got confirmed order.


Specifications:



Model No:

MF-03WB

Input voltage

12-24Vdc

Power(watt)

3W

Dimension

Product Size: Ф48×H46mm, Cut out: Ф34mm

Color temperature

WW(2700-3000K) ,NW(4000-4500K) ,CW(6000-6500K), R, G, B

LED Chip

Epistar COB

PF

>0.92

Luminous Flux (lm)

280lm

CRI(Ra)

≥80

Lifespan

≥35000hrs

Beam Angle

90°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

NO

IP

67

Material Stainless steel +Aluminium

Certificate

CE/RoHS

Warranty Period

3 years



Competitive Advantage:

  1. Independent research and development, private-mode underwater led lights, uncomparomising attention, light body compact, flexible wide used.
  2. Light color rich optional, warm white, pure white, cold white, red, green, blue for options.
  3. Beam angle 90°  a condenser, optional light expansion.
  4. Protection class IP67, can be used in 1 meters underwater.
  5. The main surface can withstand pressure up to 300kg or more.
  6. Light body with 304 stainless steel surface ring, with corrosion-resistant , high temperature, never change color, real durable.
  7. Low-voltage input , safe and reliable.
  8. High power factor>0.92.
  9. 3 years guarantee, CE, Rohs certificated.





IP67 led buried lights, 3 watt  details:



IP67 ไฟ LED ฝัง, ไฟแนวนอน 3 วัตต์, อินพุต 12-24Vdc, แดง / น้ำเงิน / เขียว 0



IP67 ไฟ LED ฝัง, ไฟแนวนอน 3 วัตต์, อินพุต 12-24Vdc, แดง / น้ำเงิน / เขียว 1



IP67 ไฟ LED ฝัง, ไฟแนวนอน 3 วัตต์, อินพุต 12-24Vdc, แดง / น้ำเงิน / เขียว 2
