IP20 Led Emergency Driver Kit Panic Light Ballast for Triproof Light Down Light Ceiling Light Highbay Light

Product description

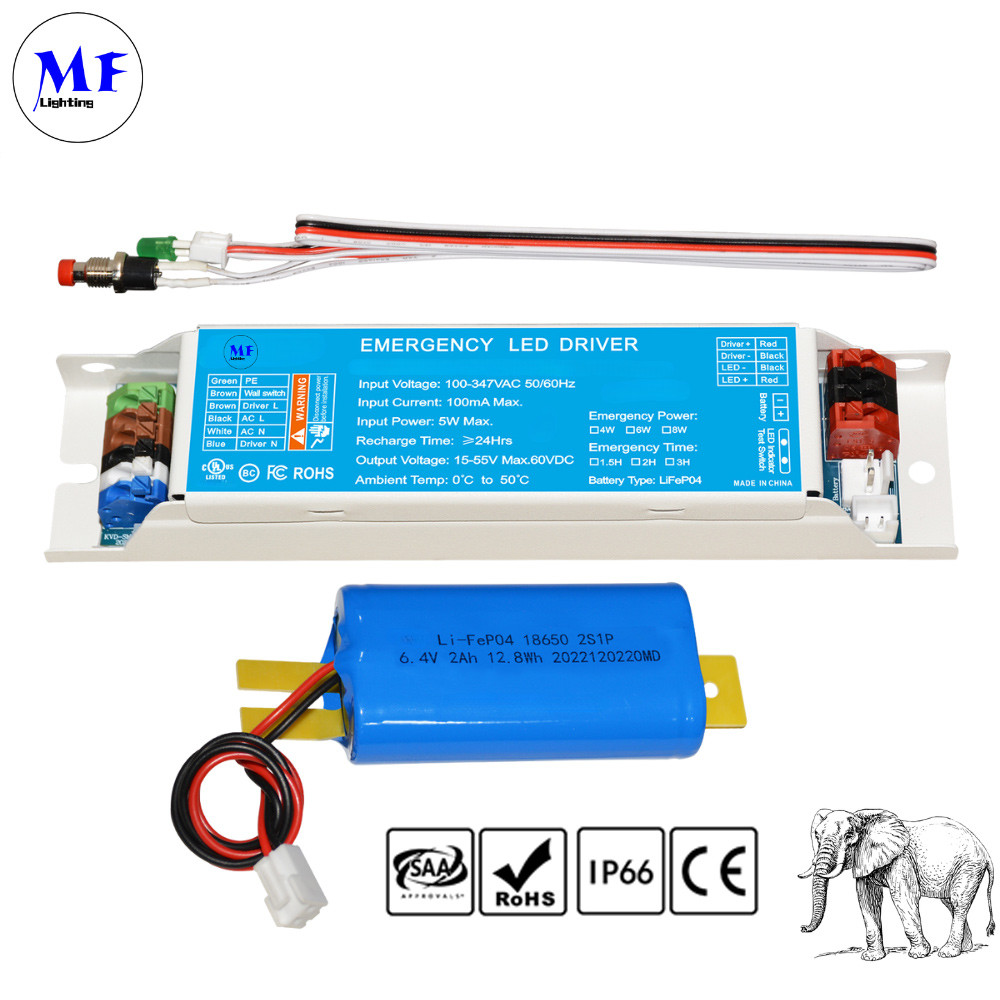

The MF-SM-xxW-8W LED Emergency Driver is a UL924/CSA-certified power backup solution featuring a 3000mAh LiFePO4 battery with 2000+ cycles and comprehensive protections. It supports 100-347VAC input, delivers 6W/8W output (15-55VDC/60-240VDC) with ≥1.5H runtime, and operates in 0°C-60°C environments. The unit includes smart LED indicators, automated quarterly testing, and manual emergency simulation, backed by a 5-year warranty for commercial/industrial lighting applications.


Certified Safety & Compliance
Meets rigorous UL924 and CSA C22.2 NO.141 safety standards with RoHS compliance, ensuring reliable operation in critical lighting applications.

Advanced Battery Technology
Features a high-capacity 3000mAh LiFePO4 battery with 2000+ charge cycles and comprehensive protection against overcharge, over-discharge, and short circuits.

Universal Power Compatibility
Supports wide input voltage range (100-347VAC) with dual output options (15-55VDC/60-240VDC), making it adaptable to various lighting configurations.

Smart Operation & Monitoring
Integrated LED indicators provide clear status updates, while automated quarterly self-tests and manual test button ensure continuous system reliability.

Durable & Maintenance-Friendly
Designed for harsh environments (0°C-60°C operation) with minimal maintenance requirements, backed by an industry-leading 5-year warranty.

Features

Meet most of safety standards for lighting
Standard CSA C22.2 NO.141 UL924
External lithium iron phosphate battery
Battery protections: over charge protection over discharge protection short circuit protection
Indicator shows a variety working modes
The batteries Meet 2000 cycles of standard CH and standard DCH
RoHS compliant

Specifications:

​

Universal Input Voltage:	100-347Vac 50/60Hz
AC Input Current:	100mA max.
AC Input Power Rating:	5.0W max.
Battery Charging Current:	250mA
Charging Time:	≥24Hours
Output Current and Voltage:	15-55VDC/60-240VDC
Emergency Time:	≥1.5H
Battery:	Li-Fep04 2000mAh-6.4V
Output Power:	8W
Full Warranty:	5 Years
Temperature Rating Ambient:	Li-Fep04 0°C to 60°C (32°F to 104°F)

​​Wiring Diagram

Standardized Color-Coding System
Green/Yellow: Protective Earth (PE) connection
Blue: Neutral (AC N) input
Brown/Black: Live (AC L) input
Red/Black: Emergency output to LED array

Dual-Circuit Integration
Simultaneously connects to both main power (AC L/N) and emergency driver
Maintains separate pathways for normal and emergency operation

Driver Interface Connections
Dedicated terminals for LED driver input (Driver L/N)
Clearly marked emergency circuit outputs (Driver +/-)

Load Connection Points
Positive/Negative terminals for LED array (LED +/-)
Designed for direct connection to lighting fixtures

Safety-Compliant Layout
Proper separation of AC and DC circuits
Clear identification of all connection points per IEC standards

Physical Configuration
Integrated terminal block design
Strain relief provisions for wiring

Measure

​LED and test button status

LED INDICATOR
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
TEST BUTTON
1: 0S<Key≤2S, Enter a simulated state of emergency, the green indicator blinks once every second, keep emergency status for 10±1 seconds and back to normal status
2: In simulated emergency situations, Short press once to exit and return to the normal charging state
3: 0S<Key≤1S. In the emergency state, the emergency state is turned off.
QUARTERLY SELF-TEST
when emergency driver is on power, every 180 days±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status.

​Installation Instructions

1: If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided
2: When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5: Emergency driver testing must be longer than 1min, don't press the testing button frequently.

​Application

Application:

Commercial Spaces
Malls, offices & retail stores requiring UL924-compliant emergency lighting for safe evacuations.
Healthcare & Education
Hospitals and schools needing reliable backup lighting in critical areas.
Industrial Facilities
Warehouses and plants requiring durable 0-60°C operation with 1.5hr runtime.
Transport Infrastructure
Airports and subways where automatic emergency lighting is mandatory.
Hospitality Venues
Hotels and convention centers needing discreet, high-performance emergency systems.
