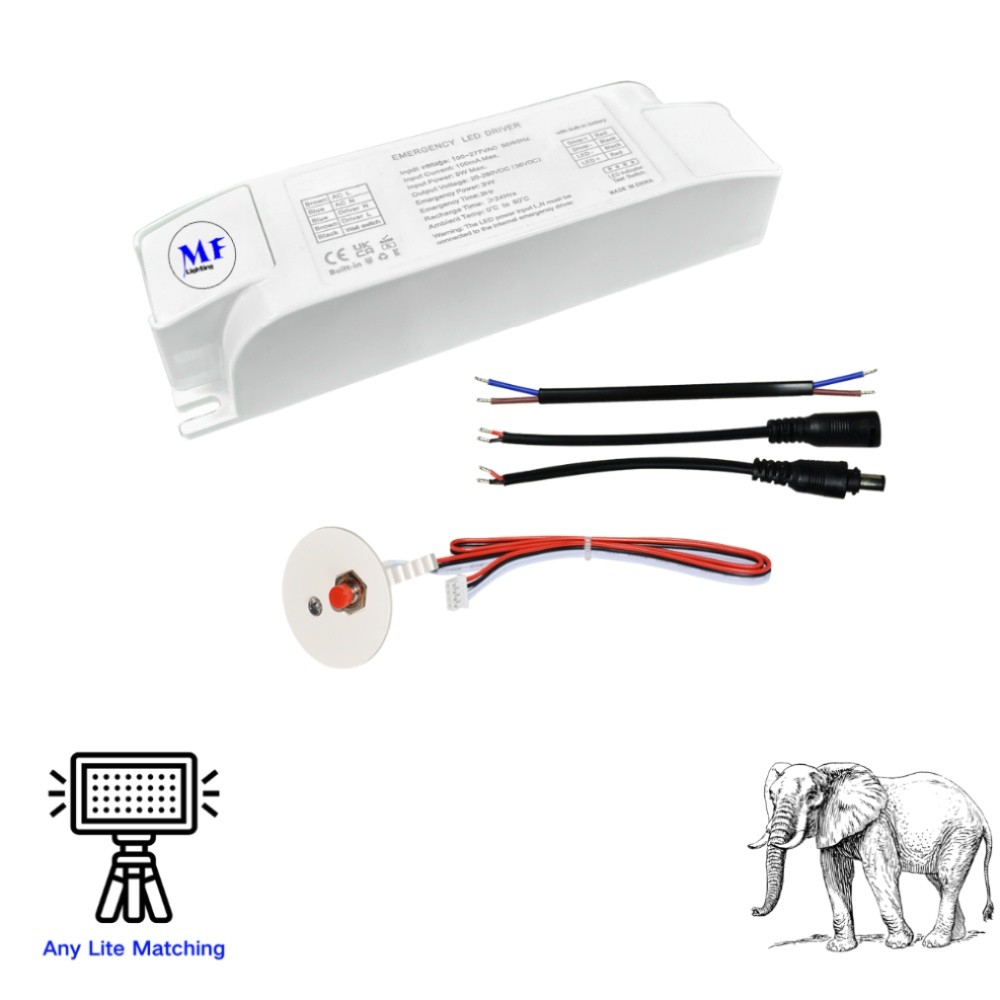

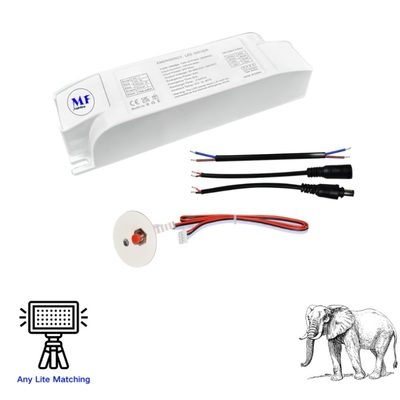

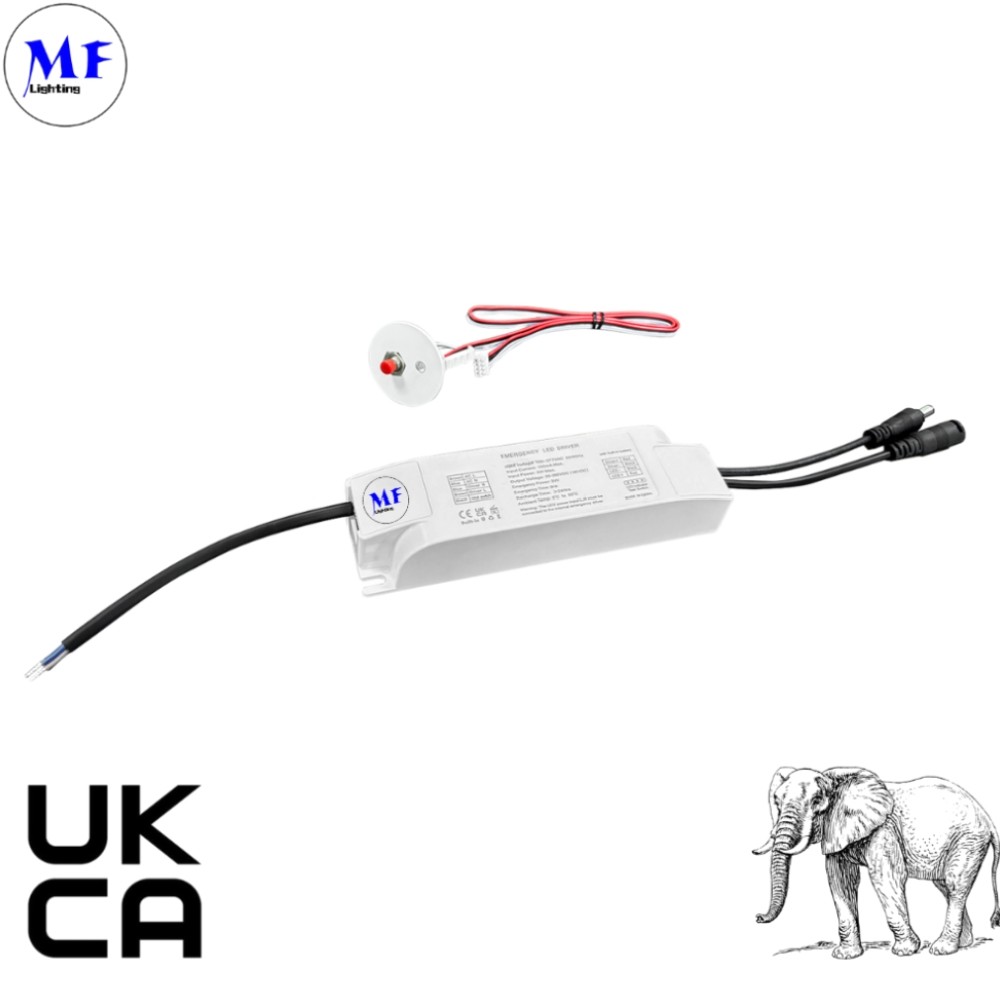

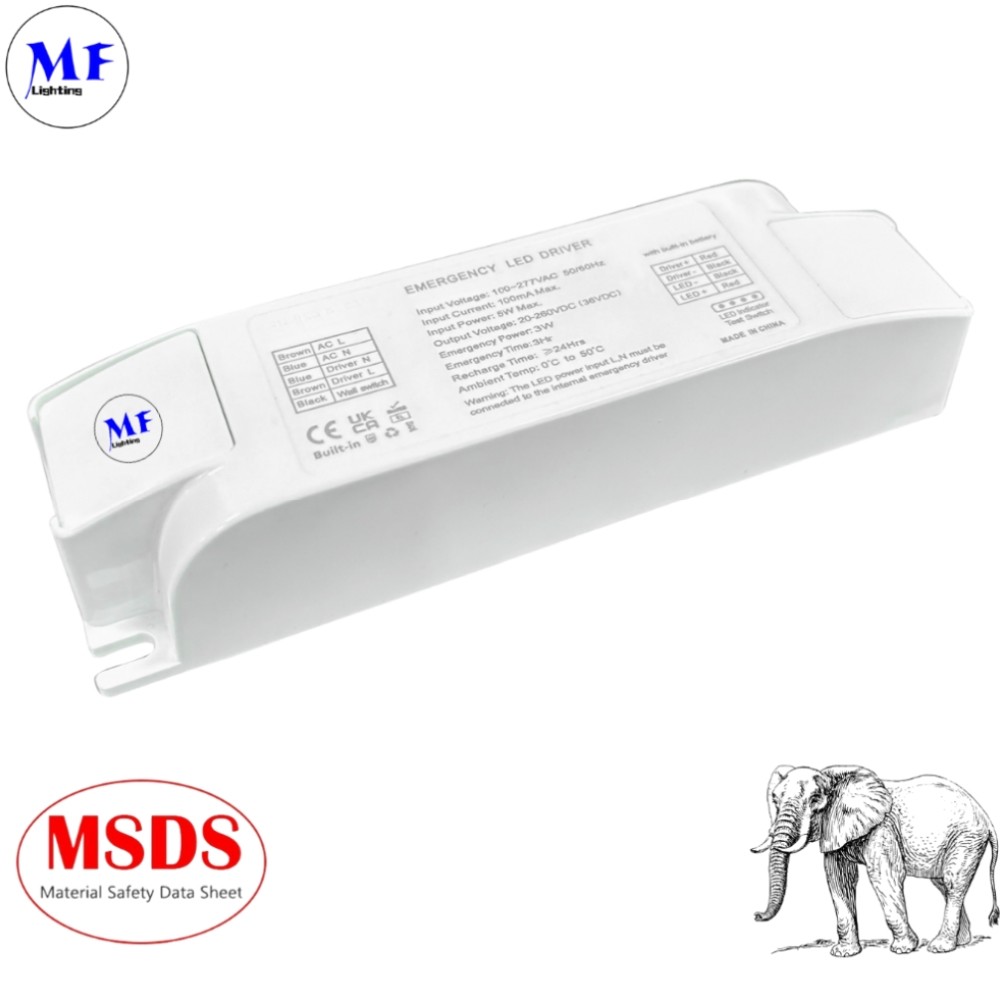

3W 5W 8W Emergency Time Power 1.5h 3h Li-ion Battery 3years Warranty 100-277V AC IP20 LED Emergency Backup Ballast Driver For Street Highbay Down Panel Light

รายละเอียดสินค้า

3W 5W 8W Emergency Time Power 1.5h 3h Li-ion Battery 3years Warranty 100-277V AC IP20 LED Emergency Backup Ballast Driver for Street Highbay Down Panel Light



Installation:



Dimension:

LED INDICATOR

Red flashing: failure as below

Red flashing Once per second: Battery is not connected

Battery is defective

Red flashing four times a second :Load failure during emergency mode,

open circuit/short circuit
Green flashing: Emergency status one per second

TEST BUTTON

1:0S<Key≤2S,Enter a simulated state of emergency,the green indicator blinks

once every second,keep emergency status for 10±1 seconds and back to normal status

2:In simulated emergency situations,

Short press once to exit and return to the normal charging state
3:0S<Key≤1S,In the emergency state, the emergency state is turned off.

QUARTERLY SELF-TEST

when emergency driver is on power,every 90 days± 1 day

automatically enter the emergency state,emergency duration

until the battery is discharged,then return to power-on status.

• Commercial Buildings: Used in offices, malls, and retail spaces to provide illumination during power outages or emergencies.

• Educational Institutions: Installed in schools, colleges, and universities for emergency lighting and evacuation guidance.

• Healthcare Facilities: Utilized in hospitals, clinics, and medical centers to ensure continuous lighting in critical areas during emergencies.

• Hospitality Industry: Found in hotels, resorts, and lodges to guide guests to safety exits in case of emergencies.

• Public Transportation: Employed in buses, trains, subways, and airports for emergency lighting and passenger guidance.

• Industrial Settings: Used in warehouses, factories, and manufacturing plants to facilitate safe evacuation during power failures or emergencies.

• Entertainment Venues: Found in theaters, concert halls, and stadiums to provide emergency lighting for crowd management and evacuation.

• Residential Buildings: Installed in apartments, condominiums, and homes for backup lighting during power outages or emergencies.

• Outdoor Spaces: Utilized in parks, parking lots, and walkways for safety lighting and visibility during nighttime emergencies.

• Emergency Vehicles: Equipped in ambulances, fire trucks, and vehicles for signaling and emergency response operations.

• Construction Sites: Used for temporary lighting during nighttime work and as emergency lighting in case of accidents

• Marine Applications: Found on boats, yachts, and ships as emergency lighting tools for navigation and safety at sea.

• Remote Locations: Deployed in remote areas, campsites, and hiking trails for emergency lighting and visibility in isolated settings.

• Traffic Control: Installed in traffic signals, signs, and road construction areas to ensure visibility during power outages or emergencies.

• Sports Facilities: Utilized in sports complexes, stadiums, and arenas for emergency lighting during events or unexpected power failures.

• Street Light High Bay Light Panel Light Downlight Tri-proof Light (Waterproof/Dustproof/Corrosion-proof Light) Magnetic Light Exit Sign Light Flood Light Explosion-proof Light General-purpose LED Fixtures Troffer Light Bulkhead Light Bathtub (Recessed) Light Track Light Recessed Spot Light Wall Pack Light Canopy Light Tunnel Light Batten Light Cove Light Linear Light Architectural Light Surface-mounted Ceiling Light Ceiling Panel Light Parking Garage Light

  Common Use Scenarios for Emergency Lighting

  Emergency drivers are used to maintain lighting during power outages, ensuring safety and visibility. Here are typical scenarios:

  Commercial & Office Buildings

  Emergency exit pathways Hallways and stairwells Lobbies and elevators Conference rooms

  Industrial Facilities & Warehouses

  High bay lighting for production lines Emergency lighting in hazardous zones Loading docks and storage areas

• Hospitals and Healthcare Facilities

  Operating rooms and patient areas Emergency exits Hallways and emergency departments

  Educational Institutions

  Classrooms and laboratories Evacuation routes Libraries and dormitories

  Hospitality & Retail

  Hotels, malls, supermarkets Emergency exits and corridors

• Transportation Hubs

  Airport terminals Metro and railway stations Parking garages

  Public Infrastructure

  Tunnels and underpasses Government buildings Utility plants

  Outdoor & Urban Areas

  Street lighting for emergency evacuation Parks and pedestrian zones Emergency lighting in flood-prone areas

•
